Emaux de Briare

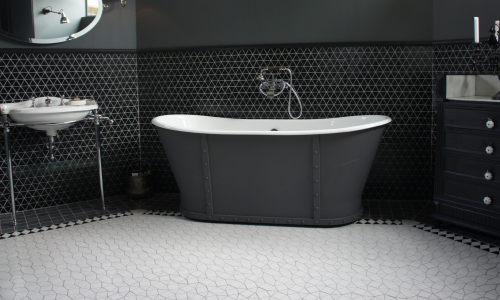

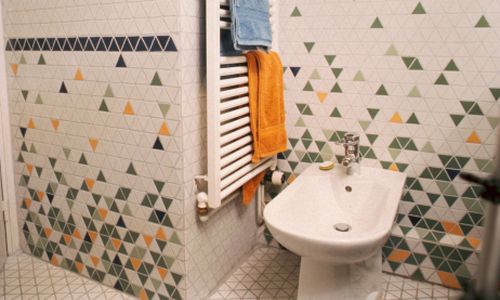

TRIO Range

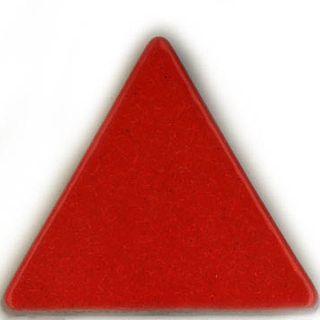

Coquelicot
TR 11

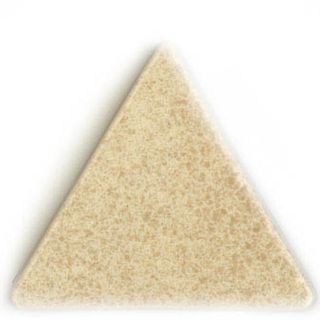

Shantung
TR 3

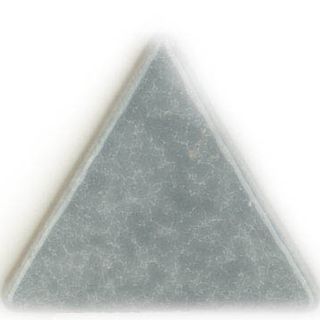

Tourterelle
TR 8

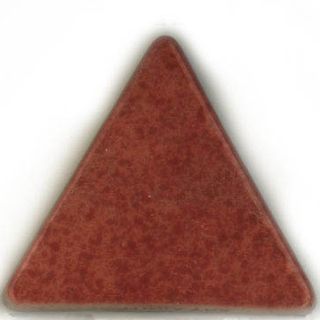

Pétunia
TR 5

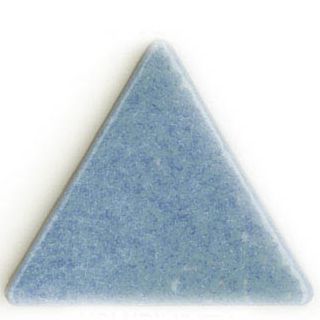

Volubilis
TR 6

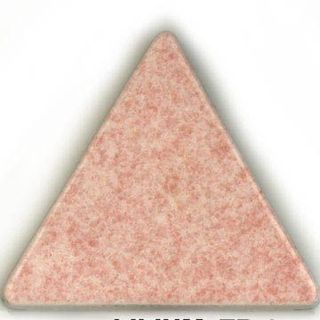

Lilium
TR 4

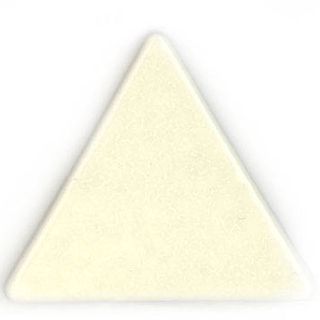

Chanvre
TR 2

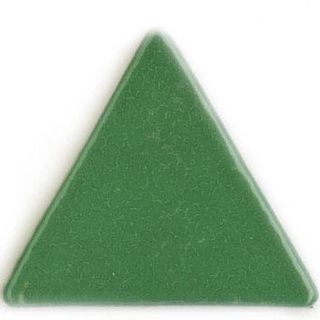

Cyprès
TR 13

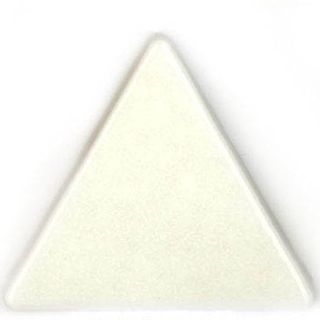

Étamine
TR 1

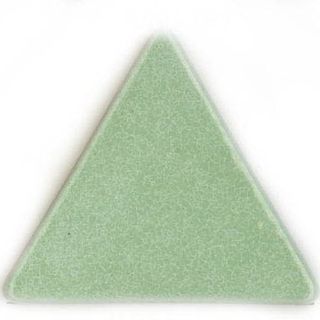

Jade
TR 12

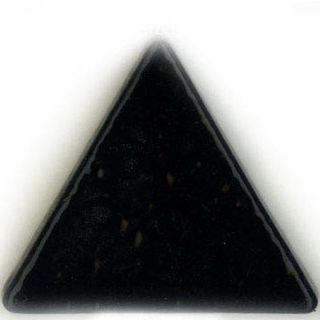

Ébène
TR 9

Presentation

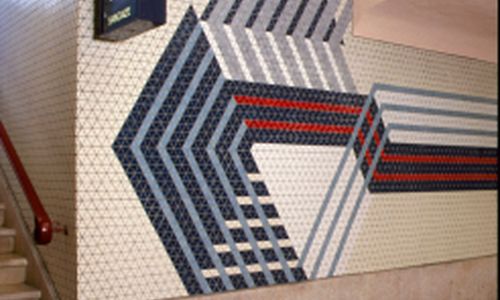

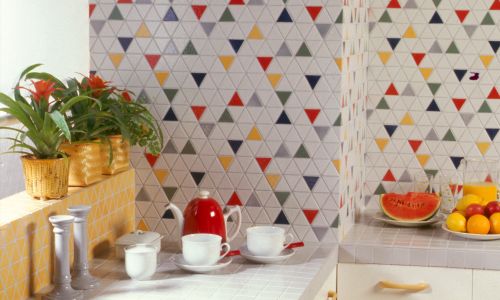

Original triangular mosaic, trio allows the creation of geometric patterns. The shapes can give a modern look to the mosaic by combining and playing with the triangles. By combining it with the Progression squares, we can make a mosaic of the Gaudi range.

Description

  • Format : Triangle 5 x 4,5 cm (côté x hauteur)
  • Epaisseur : 5,5 mm
  • Joint : 1,5 mm
  • Poids au m² : 10,6 kg

Use

  • Wall: interior & exterior
  • Floor: interior

Technical features

  • In 98 :
    • Length: 51 mm
    • Height: 45 mm
    • Thickness: 5.5 mm
  • In 99: Water absorption: < 0.1 % In 100: Flexural strength: > 60 N/mm²
  • In 101: Hardness: 5.5 mm
  • In 101: Hardness: 5-6 (MOHS scale)
  • In 103: Thermal expansion: 90 x 10
  • In 104: Thermal shock resistance: excellent
  • In 105: Braid resistance: not applicable
  • In 122: Chemical resistance: unalterable except HF
  • In 154: Abrasion resistance: excellent
  • En 202 : Resistance to frost : not applicable
  • DIN 51094 : UV resistance : unalterable

Finishing element

Packaging

  • Sheet : Dimensions : 350,2 x 303,3 mm | 0,106 m² | Paper screen on the back (Type of gluing not recommended in swimming pools and permanent wet environments)
  • Carton : 10 sheets | 1,06 m² | Gross weight : 11,5 kg
  • Pallet : 72 boxes | 76,32 m² | Gross weight : 853 kg

Installation

  • Adhesive: approx. 3 kg/m².
  • Seals: approx. 0.8 kg/m².
