Emaux de Briare

ÉCAILLES Range

Presentation

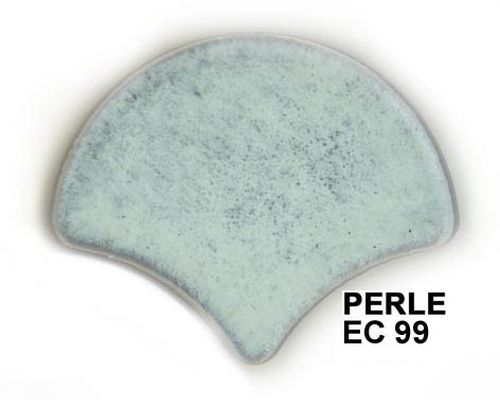

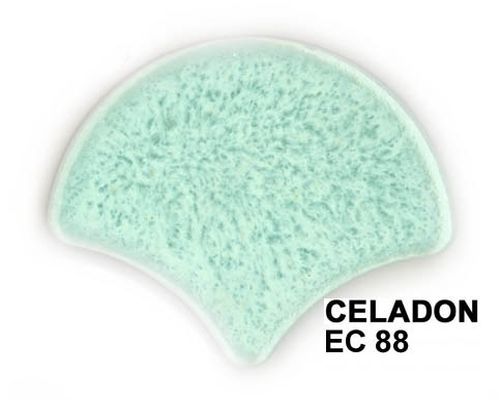

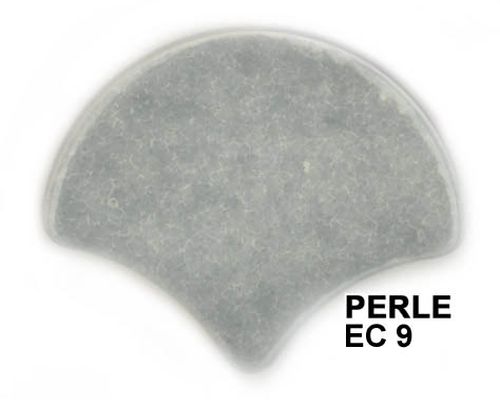

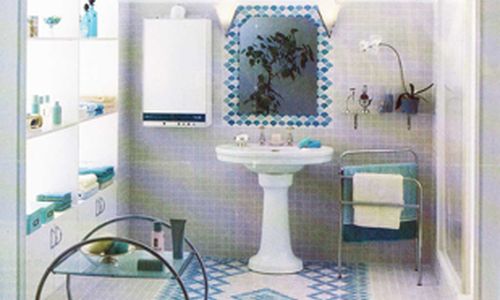

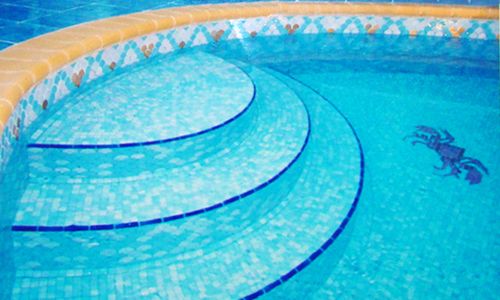

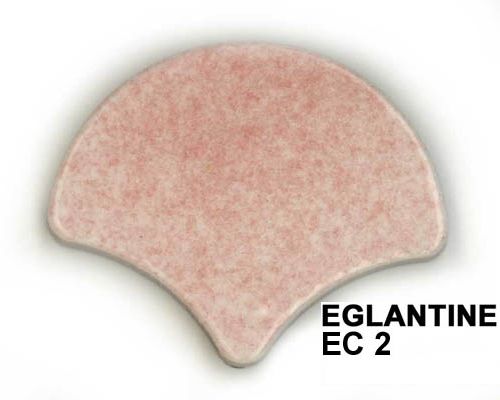

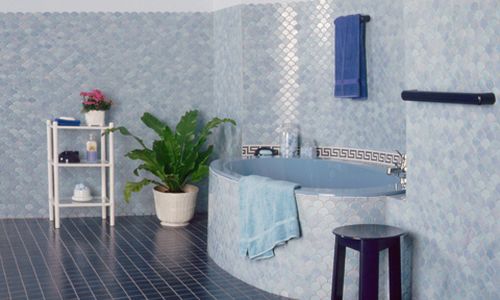

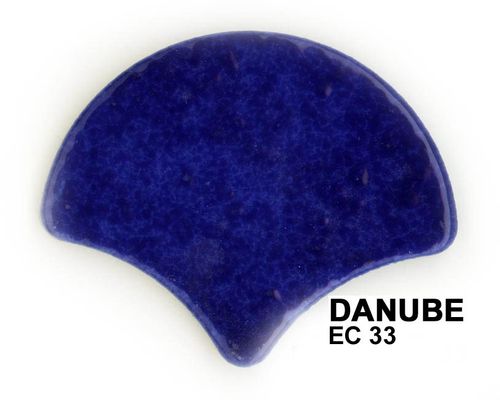

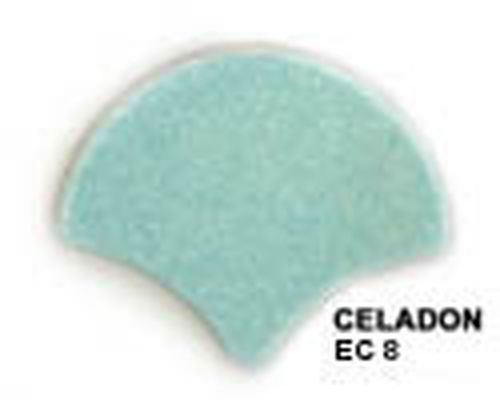

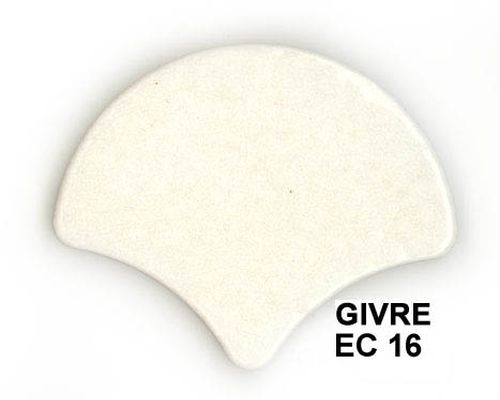

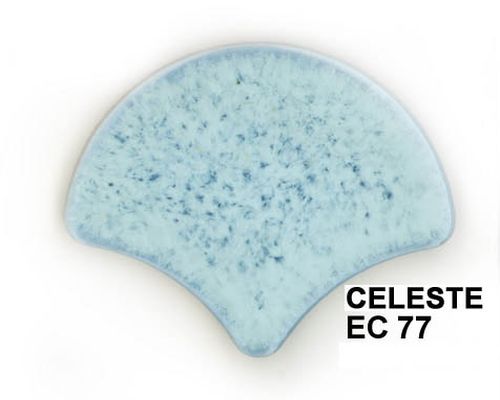

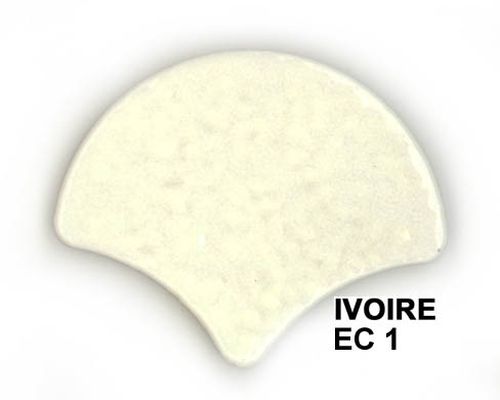

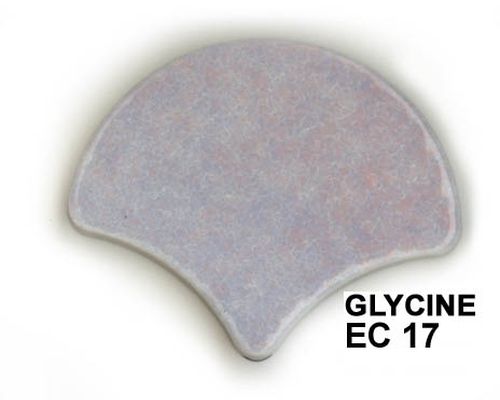

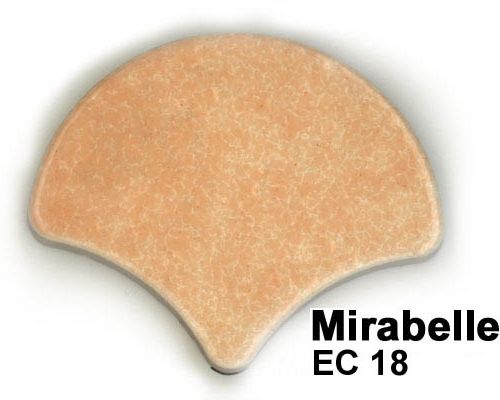

This collection of glossy mosaics is distinguished by its shell shape. Create a marine atmosphere with its lagoon blues. Original in its shape, the Ecaille mosaic creates waves in the bathroom or pool! It can be laid over an entire area or as a frieze to add a touch of aquatic decoration.

Description

  • Format : Ecaille
  • Diameter: 5.75 cm
  • Thickness: 5 mm
  • Joint : 3 mm
  • Weight per m² : 10,6 kg

Technical specifications

  • In 98 :
    • Length: 57.5 mm
    • Thickness: 5 mm
  • In 99: Water absorption: < 0.1 %
  • In 100: Flexural strength: > 60 N/mm²
  • In 101: Hardness: 5-6 (MOHS scale)
  • In 101: Hardness: 5-6 (MOHS scale)
  • In 103: Thermal expansion: 90 x 10
  • In 104: Thermal shock resistance: excellent
  • In 105: Braid resistance: not applicable
  • In 122: Chemical resistance: unalterable except HF
  • In 154: Abrasion resistance: excellent
  • En 202 : Resistance to frost : not applicable
  • DIN 51094 : UV resistance : unalterable

Use

  • Glossy appearance :
    • Wall: interior & exterior
    • Floor: interior only
  • Matte appearance :
    • Wall: interior only

Finishing element

Packaging

  • Sheet : Dimensions : 302 x 320 mm | 0,097 m² | Paper screen on the back
  • Carton : 11 sheets | 1,067 m² | Gross weight : 11,38 kg
  • Pallet : 60 boxes | 64,02 m² | Gross weight : 708 kg

Installation

  • Adhesive: approx. 3 kg/m².
  • Seals: approx. 0.8 kg/m².
